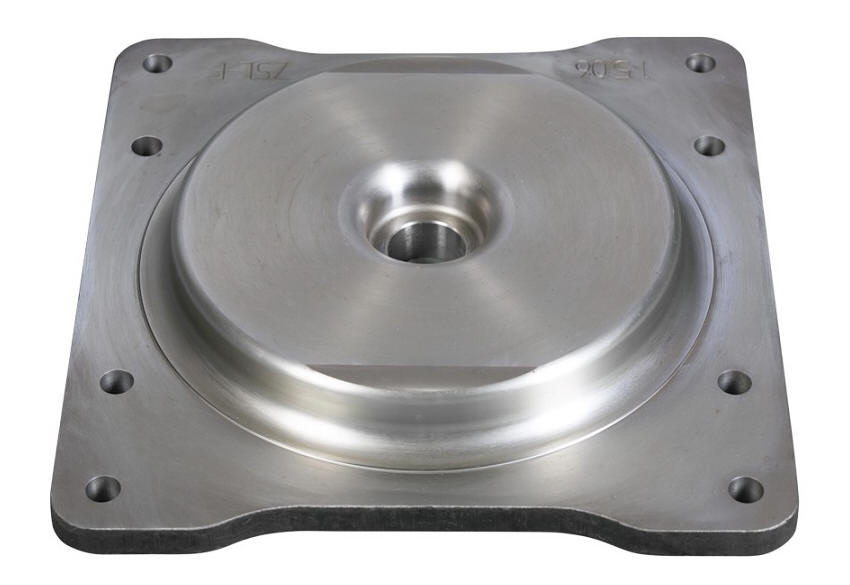

Body center plate forging steel
Introduction of main performance index
| Type of production | Major information | ||||

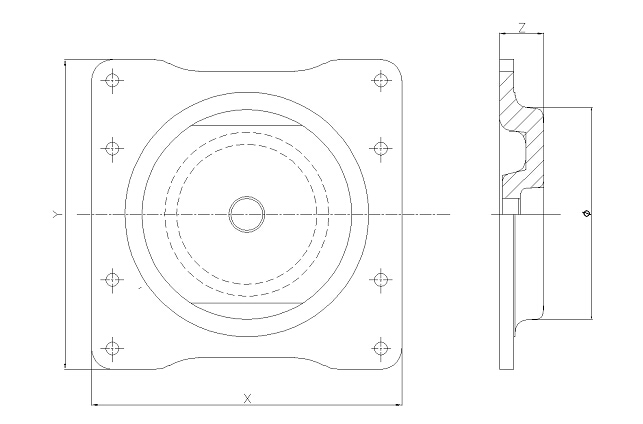

| X（mm） | Y（mm） | Z（mm） | Φ（mm） | Weight（kg） | |
| K2-type body center plate forging steel | 490 | 510 | 70 | 338 | 63 |
| K6-type body center plate forging steel | 490 | 510 | 70 | 358 | 70 |
| Other series | ≤600 | 130 | |||
| Mechanical Properties（K2、K6） | |||||
| Yield Strength | Tensile Strength | Elongation (50mm) | Reduction Of area | Hardness | Impact |
|
U-Notch （-40℃） |
|||||
| (MPA) | (MPA) | % | % | (HB) | (J) |
| ≥295 | ≥490 | ≥22 | ≥50 | / | ≥90 |
1.Casting material : 25Mn
2.Heat treatment : Normalizing .
3.Forging surface are not allowed to have a crack and fold.
4.Magnetic particle inspection
5.CRCC certification
